제품문의gics-3000
Product information
Name

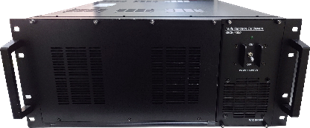

GICS-3000Order Information
GICS-3000-a : 1 Node GICS-3000-b : 2 Node GICS-3000-c : 3 NodeMFCS(Multi Function C4I System)
GICS-3000 Specification
| General | |
| Type | Cluster (3 Node) |
|---|---|
| Product Form Factor | Rack Mountable – 4.5U |
| Server Scalability | 3 way |
| Processor / Chipset | |
| CPU | Intel Xeon Processor 3.xGhz 이상 (4-Core 이상) |
|---|---|
| Max CPU Qty | 1 (for 1 Node) |
| CPU Socket | LGA 1151 or 1200 socket |
| Chipset Type | Intel C236/C246/W480 |
| RAM | |
| Installed Size | Up to 64GB(C236) / Up to 128GB(C246/W480) |
|---|---|
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 4 |
| Features | Four 288-pin 1866/2133/2666 MHz dual-channel ECC & non-ECC unbuffered DDR4 DIMMs |
| Solid State Drive | |
| Type | 2.5 inch SATA SSD |
|---|---|
| Storage Docking | |
| Type | 4 bay (for 1 Node) |
|---|---|
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller (2nd) | |
| Type | M.2 M Key(2280, Gen3 PCIe x4) |
|---|---|
| Channel Qty | 1 |
| Optical Storage | |
| Type | USB 2.0 DVD-ROM(External) |
|---|---|
| Display type | |
| Display Output | 1 x VGA 1 x HDMI |
|---|---|
| Graphics Controller | |
| Graphics Processor | Intel HD Graphics Gen 9 Engine |
|---|---|
| Video Interfaces | VGA |
| Networking | |
| Ethernet Ports | 6 x Gigabit Ethernet (for 1 Node) |
|---|---|
| Ethernet Controller | Intel I219LM Clarkville-V with Intel AMT 11.0 supported Intel I211AT PCIe controller Intel I350-T4V2 |
| Date Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Slots | 1 x PCIe 3.0 x16 / 1 x PCIe 3.0 x4 / 1 x PCI (for 1 Node) |
|---|---|
| Interfaces | 2 x USB 3.2(Gen 1) / 4 x USB 2.0 / 1 x VGA / 1 x HDMI / 1 x RS232 / 6 x Gigabit Ethernet (for 1 Node) |
| Miscellaneous | |
| Included Accessories | 7 x 80mm FAN / Rack rail kit(Optional) |
|---|---|
| Power | |
| Power Supply Unit | AC INPUT:100 ~ 240V, 800Watt (Dual redundant) |
|---|---|
| Operating System / Software | |
| OS Support | Windows/Linux/Solaris |
|---|---|
| Dimensions & Weight | |
| Width | 482(mm) |
|---|---|
| Depth | 625(mm) |
| Height | 200(mm) |
| Weight | 최대 30kg(Node 당 4.8kg) |
| Environmental Parameters | |||
| Min Operating Temperature | 0ºC | Min Storage Temperature | -20ºC |
|---|---|---|---|
| Max Operating Temperature | 50ºC | Max Storage Temperature | 70ºC |
| Humidity Range Operating | 5% ~ 90% | Humidity Range Storage | 20% ~ 90% |
